That's the Spirit - Mazda RX-7 Spirit R
By Dale Spiller
Photos by John Colley
As the saying goes all good things must come to an end, and for the Mazda
RX-7 Series 3 that end came in August 2002 when, after more than ten years
in production, it made way for the Mazda RX-8. Despite the long production
run the Series 3 was never as big a seller as the first generation of the
RX-7, and consequently was only officially available to the Japanese
domestic market from 1997 onwards. However during this decade many special
editions of the RX-7 were released, with varying modifications offering
extra power and luxuries to the consumer, perhaps in an attempt to boost
the declining rotary sales. Some of these special editions were to
commemorate certain occasions - the 'Bathurst Type R II' was one of these,
which was released in 1994 after Mazda had won the Bathurst 12 hour race
for the third year in succession. The 'Type RS-R' was another example,
released in 1997 to celebrate the 30th anniversary of Mazda's rotary
engine. Then in March 2002 came the 'Spirit R', which was to be the final
salute from Mazda to one of the best looking sports cars to have come out
of Japan.
There were only 1,500 Spirit R cars produced, making them a rare sight in
Japan let alone in the UK import market. This final edition was offered in
five colours - Vintage Red, Pure White, Titanium Grey, Innocent Blue and,
of course, Brilliant Black. There was also the choice of three models -
the Type C with auto transmission, Type B with its two plus two format and
the Type A, the purest sports model. This is a true two-seater with a
five-speed manual gearbox and, as Andrew Cozens has found out, it's a very
enjoyable car to own.
Andrew's association with the RX-7 didn't start with the purchase of this
car in January 2003. He has long been an enthusiast of the rotary engine,
having owned four RX-7s before this one - three Series 2s and a Series 3.
Andrew's life was completely taken over by RX-7s in 2000 when he bought
the RX-7 parts and servicing business called "Jimmy's", which had been
established during the 1980s by the late Jimmy Pinnock. Andrew decided to
keep the name as the company had a good reputation amongst RX-7 owners,
but he relocated it from Cambridgeshire to Hoveton, just outside of
Norwich. The range of the business has been expanded to offer everything
from guaranteed used parts to full engine re-builds, as well as a stock of
imported RX-7s with warranties.

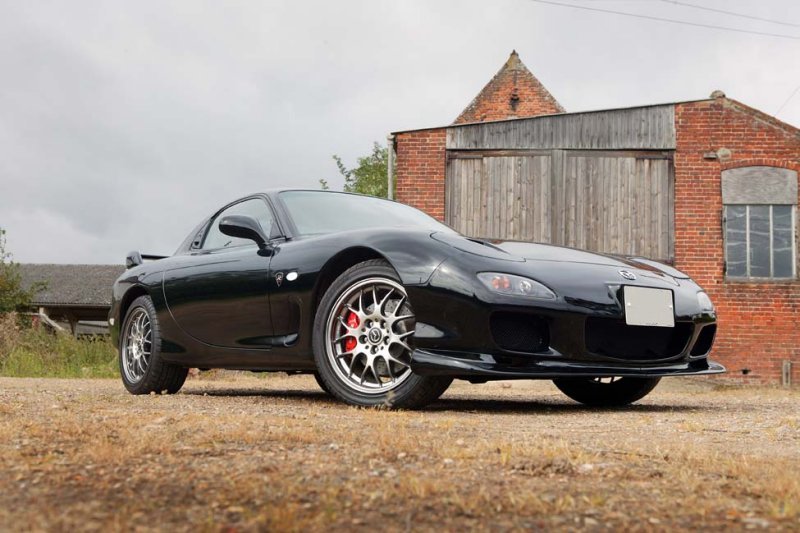

With only 2,500 miles on the clock Andrew's car still looks as good as
new, as you would expect. Personally, I have always thought that the sleek
lines of the RX-7 were somewhat lost when the car is black in colour, but
that does not mean it doesn't look good. The exterior looks are improved
with the aid of 17-inch BBS manufactured wheels that came as standard on
all Spirit Rs, though the Type A wheels are gun metal grey instead of
silver. Red coloured callipers are another nice finishing touch, along
with the braided stainless mesh brake hoses.
However, to see what I think is the most outstanding feature of this
Spirit R Type A you need to look inside - it's the seats. I know this does
not sound very exciting but just look at them; they really do look the
part. These carbon fibre backed, ultra light, red full bucket seats by
Recaro not only look good, they give the interior a race car feel and help
this RX-7 in its quest to be as lightweight as possible. Not only that,
but they also brighten up what a lot of people consider to be a dark and
dull cabin.
Under the bonnet of the Spirit R lurks a 13B rotary engine with a
sequential twin turbo set-up, which produces 280bhp at 6,500rpm. Although
when you drive this car it feels like it has more power than that - this
is mainly to do with its weight, which is only 1,260 kg. Having driven
many RX-7s in both standard and modified form it is a compliment indeed
when Andrew says that his Spirit R handles as well as any of them. Its
suspension is classic double wishbone front and rear and, with the aid of
rack and pinion power steering, the Spirit R will go where you point it.
Dampers exclusively manufactured by Bilstein are fitted to both the Type A
and the Type B models. Obviously this helps to give this RX-7 its poise
when cornering, especially in the dry. As this is a rear wheel drive car a
little more care is needed in damp conditions. Performance in the handling
stakes is also helped by the ability to brake late, as with all Series 3
RX-7s you only need to touch the brake pedal and things slow down
amazingly quickly. The ventilated discs all round and four piston
aluminium brake callipers do their job extremely well.
"The Spirit R is a great package," says Andrew, "but of course you can
always make improvements". Andrew has not gone down the route of ripping
out the twin turbo and replacing it with a huge single one, and of course
being in his position it would be an easy thing to do. No, Andrew's Spirit
R still has the twin turbo set up, and let's face it, with a top speed of
over 160mph and a 0-60mph run complete in under five seconds it performs
pretty well. Although, through Andrew's modification there is now a HKS
induction kit and a de-cat Racing Beat performance exhaust. This exhaust
not only sounds good but adds quite a few horses as well. A HKS sequential
dump valve has been fitted, and an Apexi Power FC fully programmable ECU
and commander now keep the motor settings in check. Mazdaspeed strut
braces have also been fitted at the front and rear. Inside Andrew has
replaced the original steering wheel with what surely must be one of the
world's best selling as they seem to appear in every car - the Momo type.
"When it comes to the exterior I've just made a few small changes,"
comments Andrew, "like the clear rear bumper and rear marker lights, as
well as the side indicators". A Feed headlight cover with an air intake is
another personal touch that Andrew has given his car. This is as far as
the mods go for now, but whether Andrew will change things in the future
is yet unknown. I get the feeling that he is very happy with this car and
would not want to venture too far and lose the Spirit R identification.
This would certainly be an easy thing to do externally as there are a heck
of a lot of kits available for the Series 3 RX-7. Some of these do look
good, but they do make the RX-7 look a different car and with the Spirit R
being the final edition it could become the most sought after in years to
come. Perhaps Andrew's choice to keep it in near standard form could prove
to be an investment.
With so few miles travelled Andrew's car is barely run-in but I'm sure he
will be putting more miles on the clock as soon as he can. The only
trouble for Andrew is that this RX-7 does not perform very well as a
family car, unless of course he decides to leave them at home. However,
being a true Rotarian Andrew owns a Mazda RX-8 as well for those times
when he has to be a bit more practical.
So the Spirit R took the final bow for the Series 3 RX-7 and, in its Type
A form, left as a true sports car. However, it does look like the RX-7
will return, maybe as early as 2006. With the Series 3 being such an
outstanding car it will be a hard act to follow but the rumours are
sounding good. There is talk of a pure two-seater with 300bhp on tap even
without the aid of a turbo or supercharger - now that's the Spirit.
Thanks to:
Jimmy's RX-7
www.jimmys-rx7.co.uk
Mazda RX-7 Owners Club (UK)
www.rx-7club.org
The RX Seven
www.therxseven.com
Specification:
Engine: 2 x 654cc 13B Rotary (equivalent to 2,616cc)
Power Output: 280bhp at 6,500rpm
Torque: 231lb ft at 5,000rpm
Transmission: 5 speed manual
Weight: 1,260kg
Length / Width / Height: 4,285 / 1,760 / 1,230mm
Max Speed: 163mph
0-60mph: 4.9 seconds
Wheels & Tyres: 17" BBS with 235/45 at the front and 255/40 at the rear
Spirit R |
Spirit R |
Spirit R |
Spirit R |
Spirit R |
Spirit R |
Spirit R |
Spirit R |
Engine |
Engine |
Interior |
Interior |
Recaros |
Momo steering wheel |

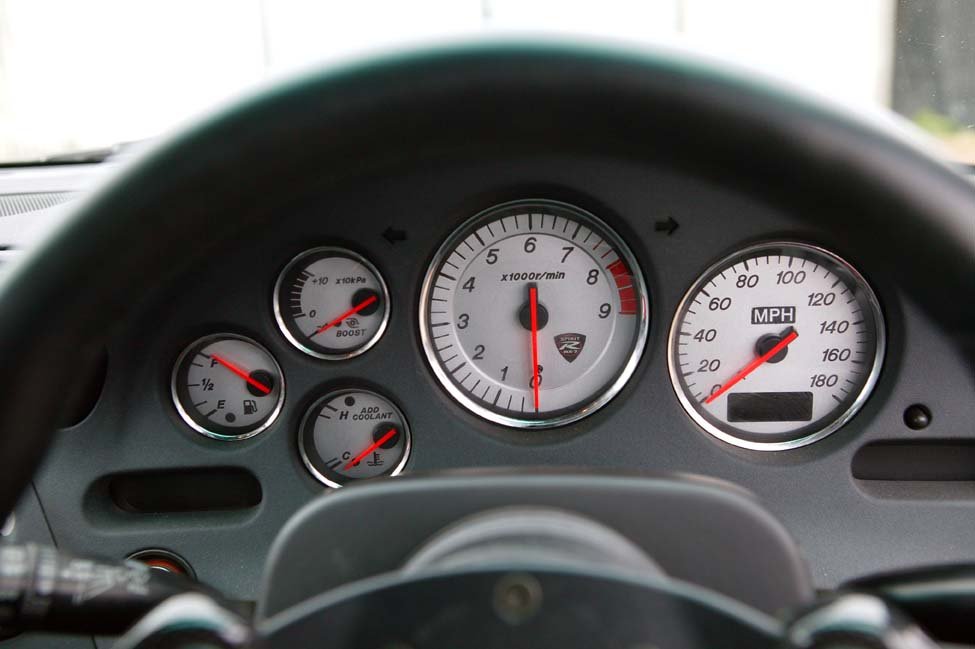

Instruments |

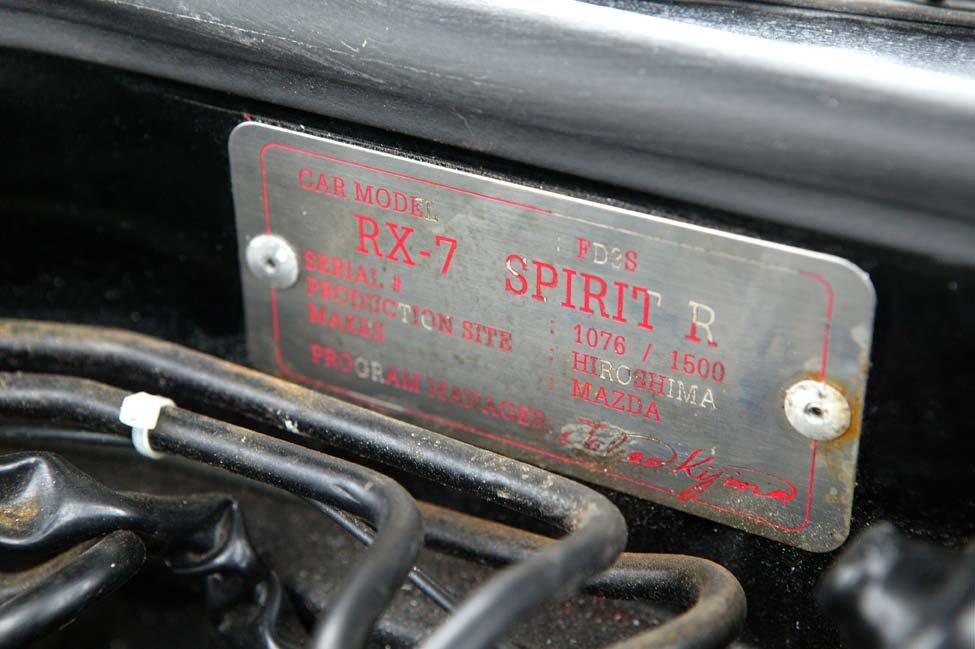

Spirit R serial number plate |

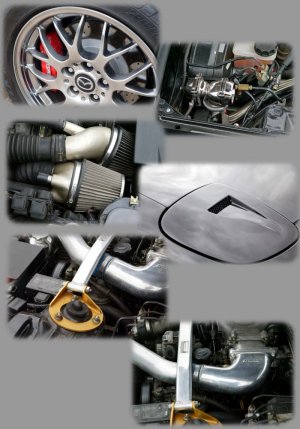

Rims, blow off valve, filters, MazdaSpeed strut brace and Greddy elbow |

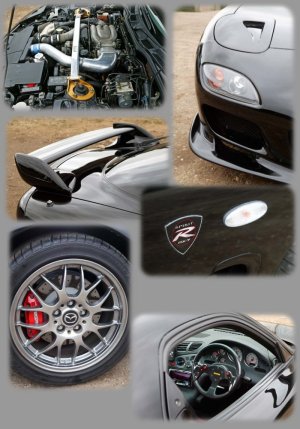

Engine, light cover air intake, adjustable rear wing, Spirit R decal, rims and interior shot |

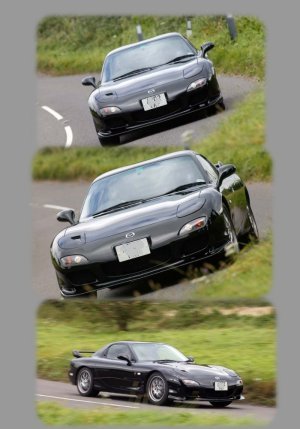

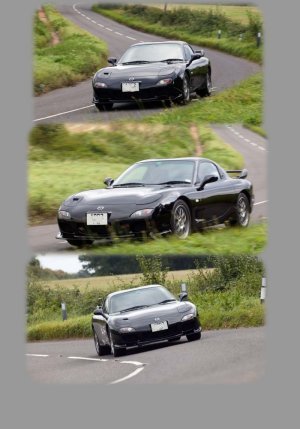

On road shots |
